Description

Overview

Essential details

Place of Origin:: Guangdong, China

Brand Name:: OEM

Part:: pontoon

Material:: HDPE

part:: floating pontoon

Bearing capacity:: no less than 350KG/㎡

size:: 500*500*400mm

weight:: 7kg/pcs

Type:: Assembled

MOQ:: 100 pcs

Lifespan:: 10-15 Years

Certificate:: SGS test report,CE, TUV

Application:: swimming pool,jet-skis dock,marina,water park

Supply Ability: 50000 Set/Sets per Month

Packaging Details

woven bag

Port

shanghai,shenzhen,ningbo

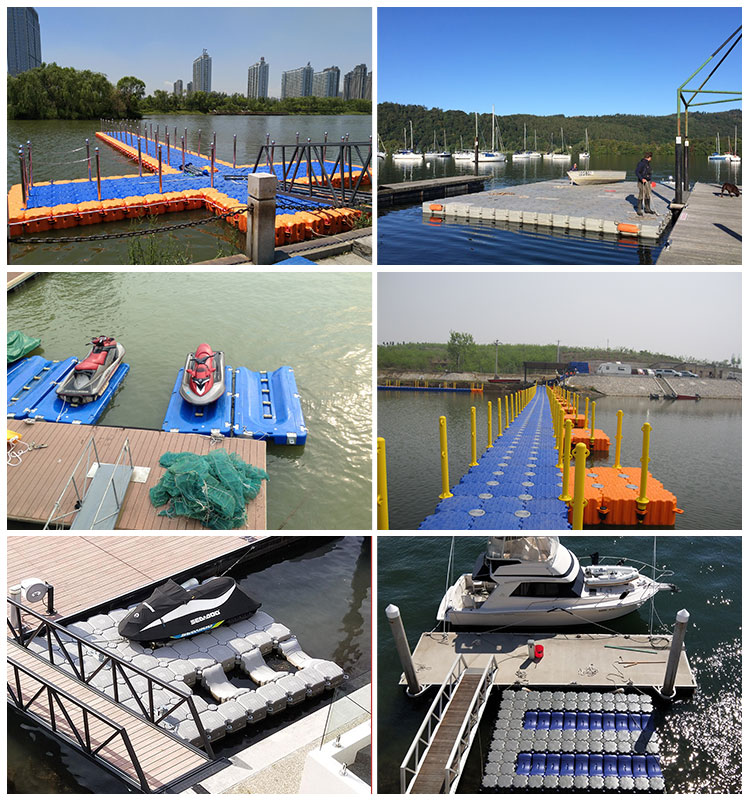

Picture Example:

Lead time:

Quantity(sets)	1 – 100	>100
Lead time (days)	7	To be negotiated

Modular Plastic Floating Pontoon Walkway, Brick, Dock

Product Description

Usage/Application	Marine platforms,solar floating unit, Floating dock, Drive-on Boat Lift, Temporary Barge. Floating bridge, fishing buoyancy equipment
Color:	Grey, Blue,Yellow,Orange(customized)
Material:	HDPE
Size/Diamention	500mm 500mm 400mm, 1000mm 500mm 400mm
Buoyant devices	DIY Assembly. Low Maintenance. Durable

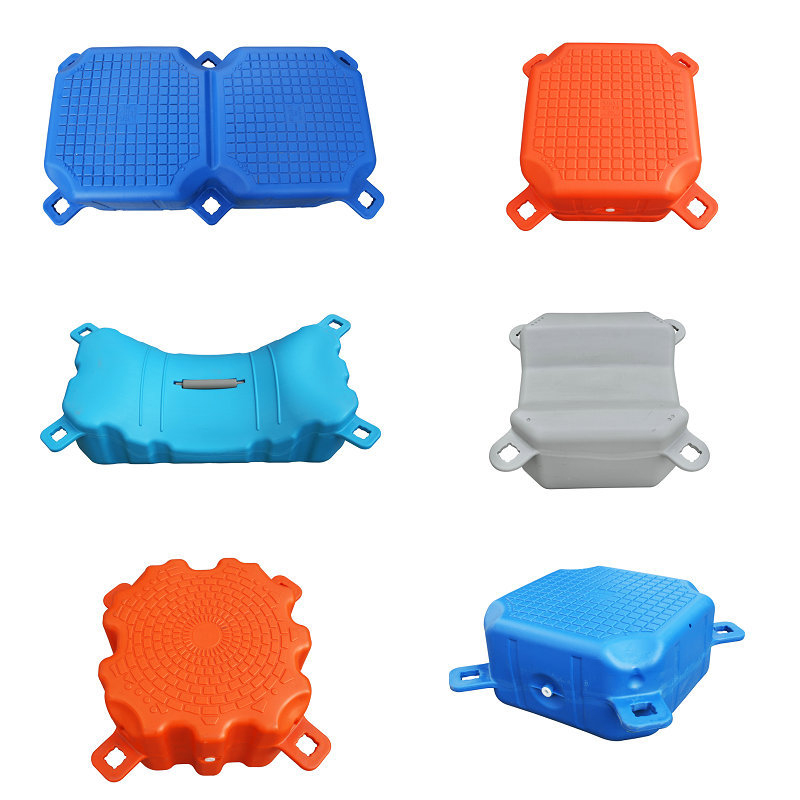

Accessories	pls refer to the following pctures

Specification

Specification	505040cm(we also have 1000500400mm, and other models)
Material	High density polyethylene (HMWHDPE),which inported from ShangHai SECCO, is a good quality, environmental protection, low temperature resistance, good durability.Raw materials for one-time blow molding.
Surface	The floating dock has a flat appearance,no burrs and flashes, no effect on the use of cracks and deformation.The color of floating dock can be customized according to requirments of the user. There is no obvious color diference on a single dock. The color of the same batch of products is basically the same
Thickness	The thinnest part is 5mm, Four ears(corners) are the thickest. The ears(corners) are solid.
HygienicIndex	Normal color and lustre,no odor,no smell,no evaporation residue and decolorization test all meet the national standard.
Capability	-60 to 80 degrees Celsius can work normally, the service life reaches 15 years, corrosion resistance, oxidation resistance, free from seawater, drugs, no pollution, no damage to the environment, and will not affect the fish ponds.
BearingCapacity	Max 300KG per square meter Degree of depth:30cm
Additive	Anti – aging , corrosion – resistant , anti – static , anti – ultraviolet
Subjected to wave forces	The safe use of water surface is within the sixth grade of wind wave.In calss7-8 of wind wave should limit the scope of use.In calss8-10 should be strengthened.
Dead weight	about 355KG, Preferably less than 350KGS
Wallop	300J
Diagonal tension	The single dock can bear more than 2500kg of tensile force without deformation and fracture

certificate

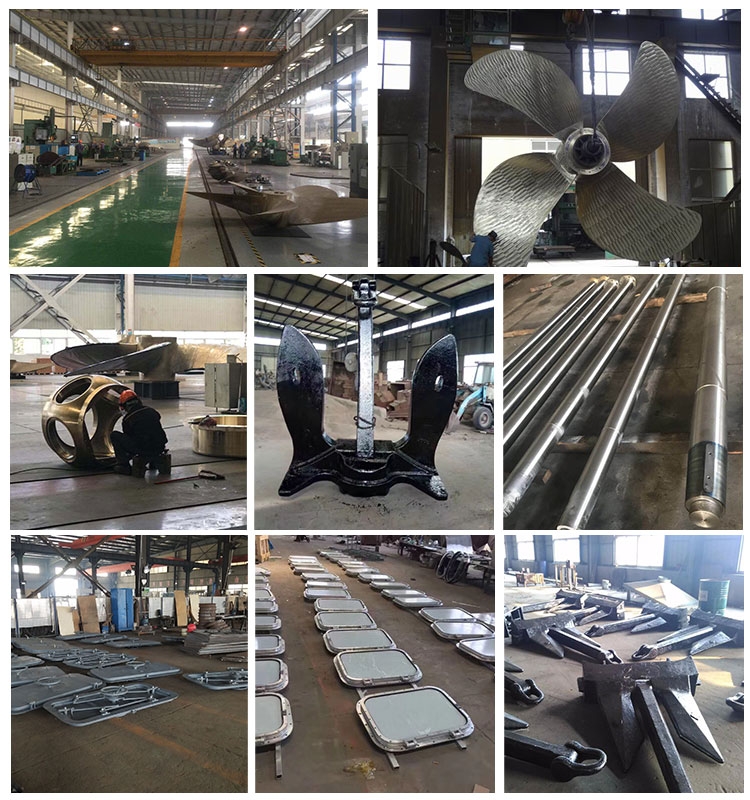

Company Information

We have been engaged in the export of Marine supplies for more than 9 years and have rich experience in marine products quality and after-sale.

Modular Plastic Floating Pontoon Walkway, Brick, Dock

FAQ

Q1. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, the sample cost and the courier cost will be paid by the customers. Please contact us to get the accurate sample price.

Q2. What’s the lead time?

A: <=200 pieces, shipped within three working days ,>200 pieces, negotiable

Q3. How about the quality?

A: the mini docks have been passed CE, SGS, TUV ISO certificate. Besides, We have strict quality control system throughout the production, packages, and shipment.

Our motoboat dock is made of high-quality imported LLDPE and is resistant to high temperature and cold, UV rays, frost, seawater, and corrosion.

Q4. What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below: Phone/whatsapp:+86-17823439266

Q5. What is your warranty?

A: 12 months warranty according to the national regulations. We provide product replacement service for customers within 12 months.

Our Services

Reply within 12 working hours

Quickly quote and provide solutions

Guide installation

12 month warranty
